HSM StoreEx HDS 150 Hard Drive Shredder (1772811)
£12,996 + vat (£15,595 inc vat)
Leasing Illustration - Example Only
This model could be available for £69.42 per week
Specifications
- Shreds Hard Drives and Magnetic Tapes up to 3.5'' (DLT, Ultrium, LTOs), Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, Solid State Drives (SSDs), Phones and PDAs.
- Up to 210 Standard Hard Drives, 1200 SSD Drives, 4200 CDs/DVDs or 280 Magnetic Tapes per hour
- DIN Security Level: T-1 / E-2 / H-3
- 165x60mm Entry Throat (Up to 3.5'' Hard Drives)
- Bin Capacity: 40 litres
- Dimensions (WxDxH): 1200x815x1325mm
Jump to: Full Product Info
Product Information
HSM HDS Shredders Overview

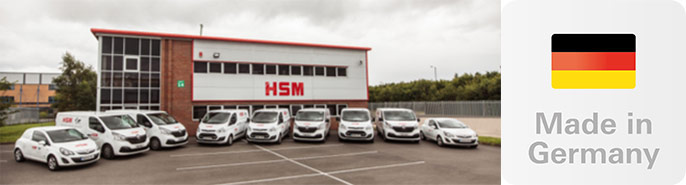

Outstanding Quality & Durability
Made in Germany Quality – HSM StoreEx shredders are designed, engineered and manufactured in Germany for outstanding quality and durability. HSM manufactures virtually all shredder components except for electrics and conveyors from raw materials (steel & plastic) in their own engineering plant in South West Germany. StoreEx machines are assembled in the main engineering plant in Salem.
HSM StoreEx machines are covered by a 1-year on-site machine warranty (single shift operation under 2,000 hrs per annum). HSM shredders are supported in the UK by HSM's own team of Service engineers, with service work control handled out of the HSM Office in Burntwood, Staffordshire.

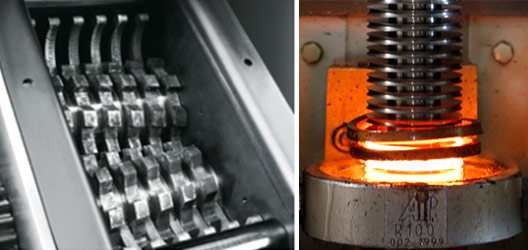

Robust Cutting Rollers
Hard Drive Shredder cutting rollers in both cutting heads are machined in HSM's CNC Machining Hall from solid rods of steel which are maintained at a constant temperature to maintain cutting tolerances. Cutters undergo a multi-stage manufacturing process including machining, induction hardening at over 800°C, precision grinding with exhaustive quality checks at every stage. These larger rollers are induction hardened offsite at a specialist facility to cope with the extremely high magnetic fields required. The resulting cutting rollers are extremely robust and very sharp, with a long effective service life.

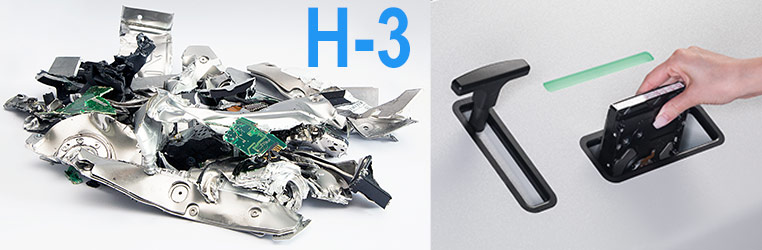

Safe & Secure
40mm strip-cut cutting unit produces shred at H-3 security level. Not only are hard drives and other media cut into strips, they are also deformed and twisted as they pass through the cutting head and provide a good level of security for most commercial applications.
Media is placed into the 165mm wide feed slot and the feed handle depressed. Media is safely fed into the machine with no danger of flying splinters leaving the machine.
The large LED display enables the continuous input of media at a comfortable working height.

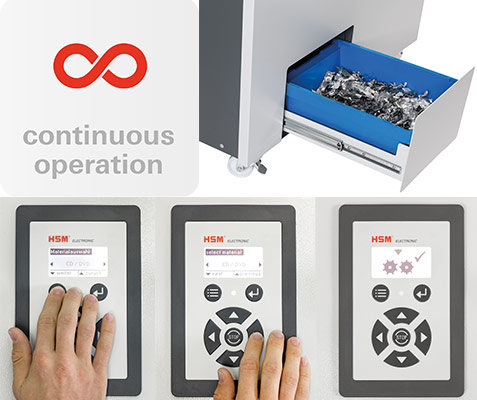

Powerful, Convenient & Easy to Use
With a powerful brushless DC induction motor and direct drive via an epicyclic gearbox to the cutting head, the HDS 150 is a single phase machine that connects to a normal 13 Amp socket.
This machine can shred:
1,200 x 2.5" hard drives/hour
210 x 3.5" hard drives/hour
Simple and intuitive control panel with an LCD display has 3 settings for different materials - Hard Drives, CD/DVD and Tape Drives, select optimum motor speed and torque for each material type. The panel sets the machine running and displays information and warning messages.
Convenient slide-out shredder bin tray with a removable light-but-strong 40-litre plastic crate bin. The crate is of a size that even when full of shredded drives, CDs, or tape, it can still be lifted out of the tray and emptied.
Product Details
Generally everyone is aware that the proper destruction of sensitive paperwork by shredding is an absolute necessity to combat data theft and reduce the risk of corporate fraud, industrial espionage and identity theft, but what is less obvious is how to dispose of the digital storage media which produces that printed data. Countless amounts of confidential information is stored on our PC and laptop hard drives, memory sticks, magnetic tapes, CDs, DVDs and Blu-ray discs, credit cards, but what do you do when these storage devices are no longer required.
The new HSM StoreEx HDS 150 Shredder is the perfect solution for destroying all types of magnetic media and the big advantage: unlike most other hard drive shredders, the HSM HDS150 plugs into a standard single phase power supply.
The data protection compliant hard drive shredder HSM StoreEx HDS 150 destroys all types of digital media devices in a safe and economical way, including most hard drives, DLT, Ultrium, LTO magnetic tapes, CDs/DVDs, Blu-ray optical media, credit and identity cards, Solid State, even Phones and PDAs. Dependent on size and type up to 210 hard drives per hour.
The German made HSM StoreEx HDS150 hard drive mechanical shredder completely destroys all data media carriers safely and efficiently into tiny 40mm strip cut through specially hardened, indestructible, solid-steel cutting rollers, making retrieval practically impossible. Supplied with a powerful 1.5kW energy-saving motor and closed direct drive system the HDS150 produces low noise levels over a continuous operation which characterise this HSM power unit durability and robustness. Other features include an intelligent multi-functional control and display panel to select the various functional modes, intuitive operator display to indicate when the next data medium can be inserted via the manual feeding slot, and a large removable, easy empty waste container for effortless storage of the shredded media. emptying.
With really small drives (especially the ones that are a small, virtually bare, piece of circuit board with a chip on it) it is possible that some could go through the HDS 150 without very much damage as they could slip through the gaps in between the teeth.
*Please note that to comply with the manufacturers delivery and installation criteria you will be required to complete a Survey Sheet prior to acceptance of your order. There will normally be additional charges dependent on your delivery location, and any specialist lifting, delivery and installation requirements, which will be agreed prior to your delivery.
Warranty Terms
1 Year Machine Warranty - Reduced to 6 months for units working in excess of 16 hours per day
Made in Germany
| Specifications | |
| Name | StoreEx HDS 150 Hard Drive Shredder |
| Manufacturer Code | 1772811 |
| Security | |
| Shred Size: | 40mm Strip Cut |
| DIN 66399 Security Levels | T-1 / E-2 / H-3 |
| Capacities | |
| Capacity | Up to 210 Standard Hard Drives, 1200 SSD Drives, 4200 CDs/DVDs or 280 Magnetic Tapes per hour |
| Specifications | |
| Throat Width | 165x60mm Entry Throat (Up to 3.5'' Hard Drives) |
| Shreds | Hard Drives and Magnetic Tapes up to 3.5'' (DLT, Ultrium, LTOs), Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, Solid State Drives (SSDs), Phones and PDAs. |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 40 litres |
| Bin Style | Pull Out Bin |
| Extra Media Waste Bin | N/A |
| Technical | |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 61 dB |
| Motor | 1500 watts |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 230/50 |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1200x815x1325mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 534kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 1 year |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
1 year |
| Downloads | |
| Buyers Guide | Download Here
 |
| Instruction Manual | Download Here
|
Specifications subject to change - See Terms & Conditions for more info
