HSM SP 5088 1.9x15mm Micro Cut Shredder Baler (2993414134)

Made in Germany Quality – HSM Powerline shredders are designed, engineered and manufactured in Germany for outstanding quality and durability. HSM manufactures virtually all shredder components except for electrics and conveyors from raw materials (steel & plastic) in their own engineering plant in South West Germany. Powerline machines are assembled in the main engineering plant in Salem.

HSM Powerline machines are covered by a 2-year on-site machine warranty (single shift operation under 2,000 hrs per annum). HSM shredders are supported in the UK by HSM's own team of Service engineers, with service work control handled out of the HSM Office in Burntwood, Staffordshire.

The cutting rollers on Powerline shredders are machined in HSM's CNC Machining Hall from solid rods of steel which are maintained at a constant temperature to maintain cutting tolerances. Cutters undergo a multi-stage manufacturing process including machining, induction hardening at over 800°C, precision grinding with exhaustive quality checks at every stage. These larger rollers are induction hardened offsite at a specialist facility to cope with the extremely high magnetic fields required. The resulting cutting rollers are extremely robust and very sharp, with a long effective service life.

Powerful Three Phase motors - 7.5 kW in Single Stage or 5kW & 4KW in P-5 Dual Stage machines give continuous run operation for impressive shredding throughput.

Optional extra wide table to accommodate large amounts of documents prior to shredding so they are easier to feed onto the conveyor belt.

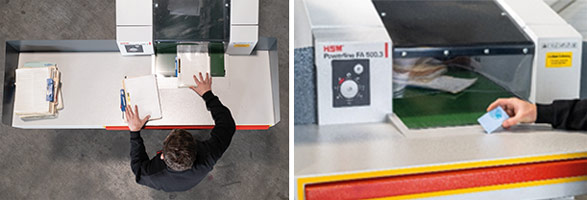

In-feed to the SP5088 is via a 500mm wide conveyor belt. Continuously feathering the documents onto the conveyor allows them to be fed quickly and efficiently to the powerful cutting head for shredding. Emergency Stop bar protects the whole width of the intake area.

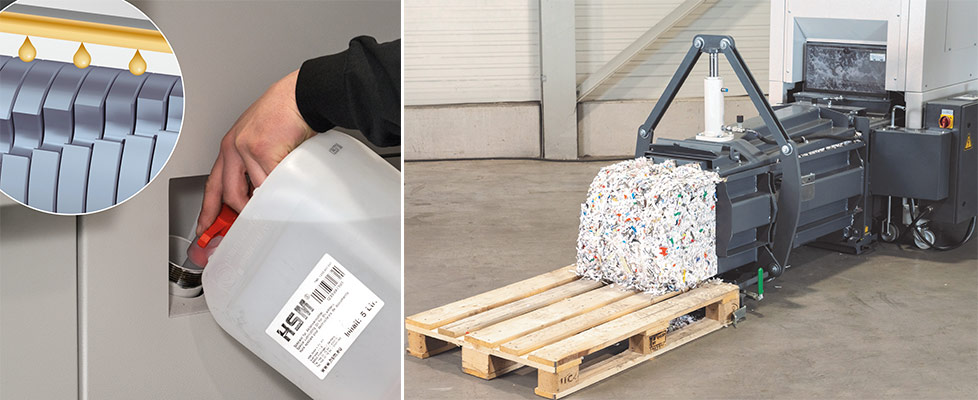

The SP5088 is equipped with an automatic oil pump and reservoir. The machine will automatically oil the cutting head for optimum cutting performance. The reservoir is topped up through the filling cap on the right of the machine body.

The continuous channel baler on the SP5088 compresses the shredded paper to form a continuous line of bales of up to 90kg each. As the baler performs compression cycles, the end bale it ejected onto a pallet for removal. The bales are bound by flexible baling tape, which are tied off manually after every completed bale formation. The completed end bale can be simply be ejected onto a pallet, bound by the tape, or optionally, a plastic bag can be fed over the bale as it ejects and can then be taped shut to fully contain the bale.
