HSM SP 5080 6x40-53mm Cross Cut Shredder Baler (2990209134)
These machines are typically manufactured to order and are usually available within 6-8 weeks.
Leasing Illustration - Example Only
This model could be available for £166.90 per week
Specifications
- 380 sheets per pass
- Shreds Individual Sheets, Complete files inc metal rings, Books, Computer Printouts, CD's/DVD's, Floppy Disks & Credit Cards
- Shreds up to 670kg per hour
- 6x40-53mm Cross Cut / DIN Security Level P-3 for sensitive & confidential data. More Info.
- 500mm Entry Throat (A4, A3 & A2)
- Produces up to 7-9 bales per hour
- Bale Dimensions (WxDxH):570x490x800mm
- Bale Weight:60-80kg
- Max Cycle Time: 18 seconds
- Pressing Power: 80 kN
- Loading Aperture: 320x510mm
- Motor: 4 kW
- Dimensions (WxDxH): 1155x2650x1410mm
- A manufacturer's demonstration is usually available on request
Jump to: Full Product Info
PDF Data Sheet
Outstanding Quality & Durability
Made in Germany Quality – HSM Powerline shredders are designed, engineered and manufactured in Germany for outstanding quality and durability. HSM manufactures virtually all shredder components except for electrics and conveyors from raw materials (steel & plastic) in their own engineering plant in South West Germany. Powerline machines are assembled in the main engineering plant in Salem.
HSM Powerline machines are covered by a 2-year on-site machine warranty (single shift operation under 2,000 hrs per annum). HSM shredders are supported in the UK by HSM's own team of Service engineers, with service work control handled out of the HSM Office in Burntwood, Staffordshire.

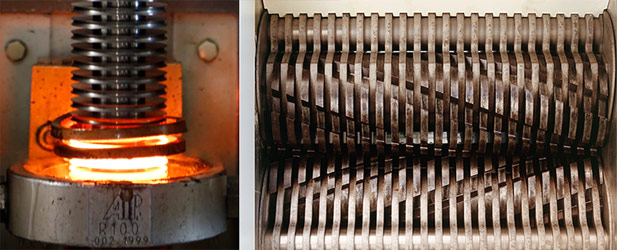

Robust Cutting Rollers & Continuous Operation
The cutting rollers on Powerline shredders are machined in HSM's CNC Machining Hall from solid rods of steel which are maintained at a constant temperature to maintain cutting tolerances. Cutters undergo a multi-stage manufacturing process including machining, induction hardening at over 800°C, precision grinding with exhaustive quality checks at every stage. These larger rollers are induction hardened offsite at a specialist facility to cope with the extremely high magnetic fields required. The resulting cutting rollers are extremely robust and very sharp, with a long effective service life.
Powerful Three Phase motors - 7.5 kW in Single Stage or 5kW & 4KW in P-5 Dual Stage machines give continuous run operation for impressive shredding throughput.

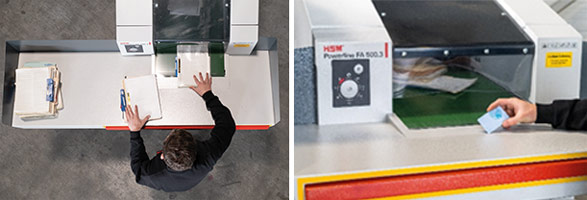

Easy to Use & Efficient
Optional extra wide table to accommodate large amounts of documents prior to shredding so they are easier to feed onto the conveyor belt.
In-feed to the SP5080 is via a 500mm wide conveyor belt. Continuously feathering the documents onto the conveyor allows them to be fed quickly and efficiently to the powerful cutting head for shredding. Emergency Stop bar protects the whole width of the intake area.

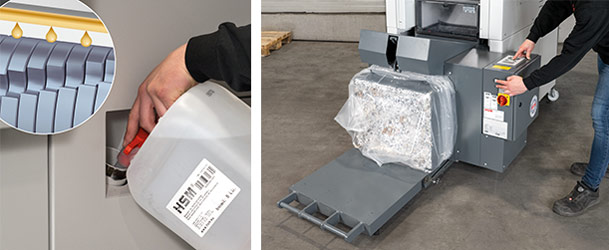

Convenient Oiler & Baler
The SP5080 is equipped with an automatic oil pump and reservoir. The machine will automatically oil the cutting head for optimum cutting performance. The reservoir is topped up through the filling cap on the right of the machine body.
The closed door baler on the SP5080 compresses the shredded paper to form a single very tight bale of between 40 & 80kg. Once the bale is complete it is ejected into a plastic bag and onto a pallet. The bag can then be taped shut to fully contain the bale.
Product Details
The HSM SP 5080 is an extremely high performance conveyor belt document shredder combined with convenient baling press (HSM FA 500.3 shredder and HSM KP 80 baler). The HSM FA 500.3 shredder is a specialist 3-Phase Cross Cut Bulk Destroyers for Continuous Operation at Large Departments and Archive departments as Central Shredding Points.
Material intake via large loading table and electric conveyor belt. Keypad control for constant operation and reverse as well as automatic reverse in the event of a paper jam. Integrated, manual oiler for cutting unit. Modern SPS controller with multilingual display and convenient menu navigation. Photoelectric cell for automatic control of the pressing process.
Shredding and pressing conducted simultaneously. Material compressed directly in the waste bag.
A display will indicate when the SP 5080 machine has finished baling.
*Please note that to comply with the manufacturers delivery and installation criteria you will be required to complete a Survey Sheet prior to acceptance of your order. There will normally be additional charges dependent on your delivery location, and any specialist lifting, delivery and installation requirements, which will be agreed prior to your delivery.
Warranty Terms
2 Year Machine Warranty - Reduced to 6 months for units working in excess of 16 hours per day
DIN Security Levels
Made in Germany
| Specifications | |
| Name | SP 5080 |
| Manufacturer Code | 2990209134 |
| Security | |
| Paper Shred Size | 6x40-53mm Cross Cut |
| DIN 66399 Security Levels | P-3 / O-2 / T-2 / E-2 |
| Capacities | |
| Sheet Capacity All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 380 sheets |
| Hourly Capacity | 670kg per hour |
| Specifications | |
| Throat Width | 500mm Entry Throat (A4, A3 & A2) |
| Shreds | Individual Sheets, Complete files inc metal rings, Books, Computer Printouts, CD's/DVD's, Floppy Disks & Credit Cards |
| Waste Bin | |
| Waste Sack Type | S8 |
| Extra Media Waste Bin | N/A |
| Baling Specifications | |
| Hourly Bales | 7-9 |
| Cycle Time (Max) | 18 seconds |
| Bale Dimensions (WxDxH) | 570x490x800mm |
| Bale Weight | 60-80kg |
| Pressing Power | 80 kN |
| Loading Aperture | 320x510mm |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 12.6 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 80 dB |
| Shredder Motor | 7.5 kW |
| Baler Motor | 4 kW |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1155x2650x1410mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 1330kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 2 years |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
2 years |
| Downloads | |
| Buyers Guide | Download Here
 |
| Instruction Manual | Download Here
|
Specifications subject to change - See Terms & Conditions for more info
