HSM SP 50100 10.5x40-76mm Cross Cut Shredder Baler (50100950)
The Public Sector, Schools & Registered Charities can order online & receive 30 days instant credit - Read more here
Sold Out
Specifications
- 530 sheets per pass
- Shreds Individual Sheets, Complete files inc metal rings, Books, Computer Printouts, CD's/DVD's, Floppy Disks & Credit Cards
- Shreds up to 1000kg per hour
- 10.5x40-76mm Cross Cut / DIN Security Level P-2 for non-sensitive internal documents. More Info.
- 500mm Entry Throat (A4, A3 & A2)
- Produces up to 9-12 bales per hour
- Bale Dimensions (WxDxH):550x490x600-1000mm
- Bale Weight:60-120kg
- Max Cycle Time: 8 seconds
- Pressing Power: 110 kN
- Loading Aperture: 500x475mm
- Motor: 7.5 kW
- Dimensions (WxDxH): 2240x4360x1770mm
Jump to: Full Product Info
PDF Data Sheet
Product Details

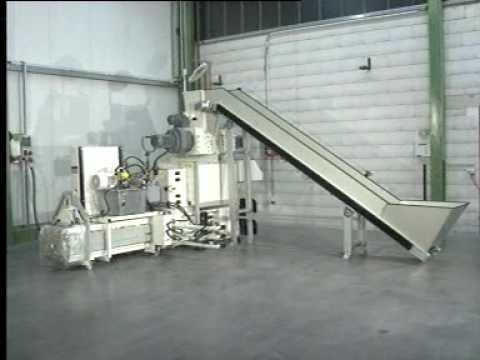

The HSM SP 50100 is an extremely high performance conveyor belt document shredder combined with convenient baling press (HSM FA 500.3 shredder and HSM KP 100 baler). The HSM FA 500.3 shredder is a specialist 3-Phase Cross Cut Bulk Destroyers for Continuous Operation at Large Departments and Archive departments as Central Shredding Points.
Material intake via large loading table and electric conveyor belt, or optionally via inclined conveyor belt and preshredder. Direct transfer of the material to be shredded to the downstream baling press. Keypad control for constant operation and reverse as well as automatic reversing in the event of a paper jam. Integrated, manual oiler for cutting unit. Modern SPS controller with multilingual display and convenient menu navigation. Photoelectric cell for automatic control of the pressing process.
Shredding and pressing conducted simultaneously. Press with inspection door (dimensions 475 x 500 mm) and separate filling opening. Fully automatic 3-fold strapping technology with patented winding technique and integrated polythene bag attachment (basic equipment: 5 plastic bags).
A display will indicate when the SP 50100 machine has finished baling.
*Please note that to comply with the manufacturers delivery and installation criteria you will be required to complete a Survey Sheet prior to acceptance of your order. There will normally be additional charges dependent on your delivery location, and any specialist lifting, delivery and installation requirements, which will be agreed prior to your delivery.
Warranty Terms
2 Year Machine Warranty - Reduced to 6 months for units working in excess of 16 hours per day
DIN Security Levels
Made in Germany
| Specifications | |
| Name | SP 50100 |
| Manufacturer Code | 50100950 |
| Security | |
| Paper Shred Size | 10.5x40-76mm Cross Cut |
| DIN 66399 Security Levels | P-2 / O-2 / T-2 / E-2 |
| Capacities | |
| Sheet Capacity All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 530 sheets |
| Hourly Capacity | 1000kg per hour |
| Specifications | |
| Throat Width | 500mm Entry Throat (A4, A3 & A2) |
| Shreds | Individual Sheets, Complete files inc metal rings, Books, Computer Printouts, CD's/DVD's, Floppy Disks & Credit Cards |
| Waste Bin | |
| Waste Sack Type | S8 |
| Extra Media Waste Bin | N/A |
| Baling Specifications | |
| Hourly Bales | 9-12 |
| Cycle Time (Max) | 8 seconds |
| Bale Dimensions (WxDxH) | 550x490x600-1000mm |
| Bale Weight | 60-120kg |
| Pressing Power | 110 kN |
| Loading Aperture | 500x475mm |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 12.6 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 80 dB |
| Shredder Motor | 11.5 kW |
| Baler Motor | 7.5 kW |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 2240x4360x1770mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 2526kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 2 years |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
1 year |
| Downloads | |
| Buyers Guide | Download Here
 |
Specifications subject to change - See Terms & Conditions for more info
