HSM Powerline FA 500.3 + Extended Loading Table 3.9x40mm Cross Cut Shredder (1994114T)
£24,325 + vat (£29,189 inc vat)
These machines are typically manufactured to order and are usually available within 6-8 weeks.
Leasing Illustration - Example Only
This model could be available for £127.33 per week
Specifications
- 190 sheets per pass
- Shreds Individual sheets, complete files inc metal rings, books, computer printouts, CD's/DVD's, floppy disks & credit cards
- Shreds up to 317kg per hour
- 3.9x40mm Cross Cut / DIN Security Level P-4 for sensitive, confidential & personal data. More Info.
- 500mm Entry Throat (A4, A3 & A2)
- Bin Capacity: 530 litres
- Dimensions (WxDxH): 1768x1792x1797mm
- A manufacturer's demonstration is usually available on request
Jump to: Full Product Info
PDF Data Sheet
Shredder Oil & Waste Sacks for the HSM Powerline FA 500.3 + Extended Loading Table
£348.30 (x3)
£1,032.00 (x10)
Outstanding Quality & Durability
Made in Germany Quality – HSM Powerline shredders are designed, engineered and manufactured in Germany for outstanding quality and durability. HSM manufactures virtually all shredder components except for electrics and conveyors from raw materials (steel & plastic) in their own engineering plant in South West Germany. Powerline machines are assembled in the main engineering plant in Salem.
HSM Powerline machines are covered by a 2-year on-site machine warranty (single shift operation under 2,000 hrs per annum). HSM shredders are supported in the UK by HSM's own team of Service engineers, with service work control handled out of the HSM Office in Burntwood, Staffordshire.
Robust Cutting Rollers & Continuous Operation
The cutting rollers on Powerline shredders are machined in HSM's CNC Machining Hall from solid rods of steel which are maintained at a constant temperature to maintain cutting tolerances. Cutters undergo a multi-stage manufacturing process including machining, induction hardening at over 800°C, precision grinding with exhaustive quality checks at every stage. These larger rollers are induction hardened offsite at a specialist facility to cope with the extremely high magnetic fields required. The resulting cutting rollers are extremely robust and very sharp, with a long effective service life.
Powerful Three Phase motors - 7.5 kW in Single Stage or 5kW & 4KW in P-5 Dual Stage machines give continuous run operation for impressive shredding throughput.

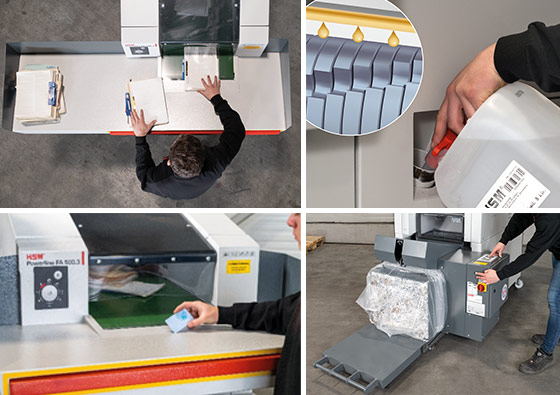

Special Features
Optional extra wide table to accommodate large amounts of documents prior to shredding so they are easier to feed onto the conveyor belt.
In-feed to the FA 500 is via a 500mm wide conveyor belt. Continuously feathering the documents onto the conveyor allows them to be fed quickly and efficiently to the powerful cutting head for shredding. Emergency Stop bar protects the whole width of the intake area.
The FA 500 is equipped with an automatic oil pump and reservoir. The machine will automatically oil the cutting head for optimum cutting performance. The reservoir is topped up through the filling cap on the right of the machine body.
The bin compartment in the FA 500 contains a 530-litre collecting trolley. This can be set up to use a single 530-litre bag, or can be divided to hold 2 x 265-litre bags.
Product Details
The New HSM Powerline FA 500.3 Shredders complete with an Extended loading table are Specialist 3-Phase Cross Cut Bulk Destroyers for Continuous Operation at Large Departments and Archive departments as Central Shredding Points. As un upgrade of the hugely popular FA 500 series 2 the new series 3 offer a host of Operator Advantages plus the addition of Security Level 4 version for higher classified requirements.
The FA 500.3 has been designed specifically for use in IT Departments, fro Archive Companies or as a Centralised Shredding Point where bulk destruction of sensitive documents is required. All models can shred Paper plus CDs and Floppy Disks, and can even shred entire Files and Folders. The sturdy technology has been specially designed to process a very large throughput capacity over a prolonged operating time.
The HSM FA 500.3 machines feature an Integrated, Manual Oiling System to keep the Cutting Unit running smoothly and the material is fed by a Conveyor System through an Intake Loading Table and Electric Conveyor Belt. Other features includes a Stand-by mode with LED indicator, Keypad Control for constant operation and reverse, and an Automatic Stop and Reverse in the event of paper jam. Made in Germany
*Please note that to comply with the manufacturers delivery and installation criteria you will be required to complete a Survey Sheet prior to acceptance of your order. There will normally be additional charges dependent on your delivery location, and any specialist lifting, delivery and installation requirements, which will be agreed prior to your delivery.
Warranty Terms
2 Year Machine Warranty - Reduced to 6 months for units working in excess of 16 hours per day
GDPR Compliance
DIN Security Levels
Made in Germany
| Specifications | |
| Name | Powerline FA 500.3 + Extended Loading Table |
| Manufacturer Code | 1994114T |
| Security | |
| Paper Shred Size | 3.9x40mm Cross Cut |
| DIN 66399 Security Levels | P-4 / O-3 / T-4 / E-3 / F-1 |
| Capacities | |
| Sheet Capacity All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 190 sheets |
| Hourly Capacity | 317kg per hour |
| Specifications | |
| Throat Width | 500mm Entry Throat (A4, A3 & A2) |
| Shreds | Individual sheets, complete files inc metal rings, books, computer printouts, CD's/DVD's, floppy disks & credit cards |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 530 litres |
| Waste Sack Type | S9 |
| Extra Media Waste Bin | N/A |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 12.6 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 75 dB |
| Motor | 7.5 kW |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1768x1792x1797mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 790kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 2 years |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
2 years |
| Downloads | |
| Buyers Guide | Download Here
 |
| Instruction Manual | Download Here
|
Specifications subject to change - See Terms & Conditions for more info
