HSM Powerline FA 400.2 5.8x50mm Cross Cut Shredder (1514144)
£8,612 + vat (£10,334 inc vat)
These machines are typically manufactured to order and are usually available within .
Leasing Illustration - Example Only
This model could be available for £46.00 per week
Specifications
- 96 sheets per pass
- Shreds Individual sheets, books, computer printouts, CD's/DVD's, floppy disks & credit cards
- Shreds up to 350kg per hour
- 5.8x50mm Cross Cut / DIN Security Level P-3 for sensitive & confidential data. More Info.
- 428mm Entry Throat (A4, A3 & A2)
- Bin Capacity: 460 litres
- Dimensions (WxDxH): 1157x1568x1650mm
- A manufacturer's demonstration is usually available on request
Jump to: Full Product Info
Site Survey Form
Shredder Oil & Waste Sacks for the HSM Powerline FA 400.2
£348.30 (x3)
£1,032.00 (x10)
£135.70 (x2)
£332.25 (x5)
£184.20 (x2)
£451.00 (x5)
Outstanding Quality & Durability
Made in Germany Quality – HSM Powerline shredders are designed, engineered and manufactured in Germany for outstanding quality and durability. HSM manufactures virtually all shredder components except for electrics and conveyors from raw materials (steel & plastic) in their own engineering plant in South West Germany. Powerline machines are assembled in the main engineering plant in Salem.
HSM Powerline machines are covered by a 2-year on-site machine warranty (single shift operation under 2,000 hrs per annum). HSM shredders are supported in the UK by HSM's own team of Service engineers, with service work control handled out of the HSM Office in Burntwood, Staffordshire.

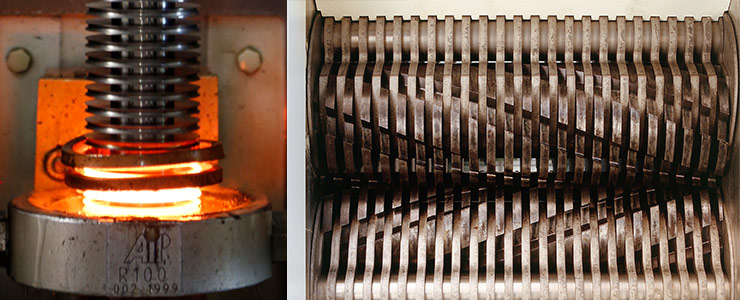

Robust Cutting Rollers & Continuous Operation
The cutting rollers on Powerline shredders are machined in HSM's CNC Machining Hall from solid rods of steel which are maintained at a constant temperature to maintain cutting tolerances. Cutters undergo a multi-stage manufacturing process including machining, induction hardening at over 800°C, precision grinding with exhaustive quality checks at every stage. These larger rollers are induction hardened offsite at a specialist facility to cope with the extremely high magnetic fields required. The resulting cutting rollers are extremely robust and very sharp, with a long effective service life.
Powerful 4kW Three Phase motor gives continuous run operation for impressive shredding throughput.

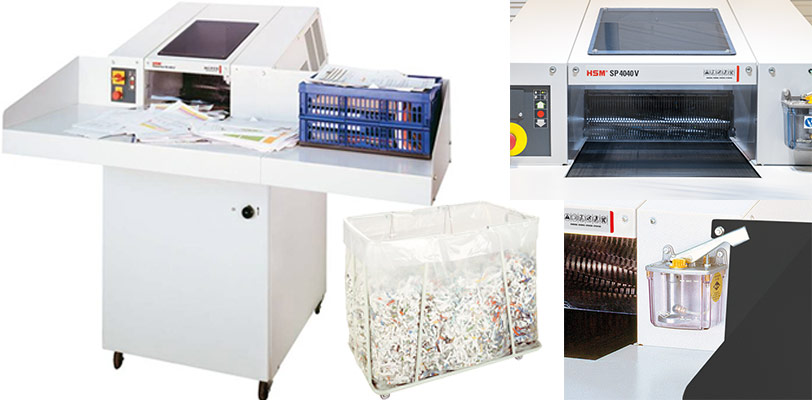

Special Features
Optional extra wide table to accommodate large amounts of documents prior to shredding so they are easier to feed onto the conveyor belt.
In-feed to the FA 400 is via a 400mm wide conveyor belt. Continuously feathering the documents onto the conveyor allows them to be fed quickly and efficiently to the powerful cutting head for shredding.
The FA 400 is equipped with a manual oil pump and reservoir. Every time the bag is changed or if the cutting quality deteriorates or the machine becomes noisy, then a few pumps on the lever will oil the cutting head for optimum cutting performance.
The bin compartment in the FA 400 contains a 460-litre collecting trolley (image not to scale). This can be set up to use a single 460-litre bag, or can be divided to hold 2 x 230-litre bags.
Product Details
The HSM Powerline FA 400.2 is a High Capacity 3-Phase Conveyor Belt Cross Cut document Shredder ideally suited for continuous operation at IT departments or business areas.
The material is fed through an intake loading table and electric conveyor belt. There is also a keypad control for constant operation and reverse.
Auto start stop via photoelectric cell plus auto stop when container is full. Auto reverse in the event of a jam. Cross cut versions have an Integrated, manual oiler for the cutting unit.
2 collection bags each with 230 litres are available as standard.
*Please note that to comply with the manufacturers delivery and installation criteria you will be required to complete a Survey Sheet prior to acceptance of your order. There will normally be additional charges dependent on your delivery location, and any specialist lifting, delivery and installation requirements, which will be agreed prior to your delivery.
Warranty Terms
2 Year Machine Warranty - Reduced to 6 months for units working in excess of 16 hours per day
DIN Security Levels
Made in Germany
| Specifications | |
| Name | Powerline FA 400.2 |
| Manufacturer Code | 1514144 |
| Security | |
| Paper Shred Size | 5.8x50mm Cross Cut |
| DIN 66399 Security Levels | P-3 / O-2 / T-3 / E-2 |
| Capacities | |
| Sheet Capacity (80gsm) All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 96 sheets |
| Sheet Capacity (70gsm) All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 120 sheets |
| Hourly Capacity | 350kg per hour |
| Specifications | |
| Throat Width | 428mm Entry Throat (A4, A3 & A2) |
| Shreds | Individual sheets, books, computer printouts, CD's/DVD's, floppy disks & credit cards |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 460 litres |
| Waste Sack Type | S9 |
| Extra Media Waste Bin | N/A |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 13.2 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 61 dB |
| Motor | 4 kW |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1157x1568x1650mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 425kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 2 years |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
2 years |
| Downloads | |
| Buyers Guide | Download Here
 |
| Instruction Manual | Download Here
|
Specifications subject to change - See Terms & Conditions for more info
