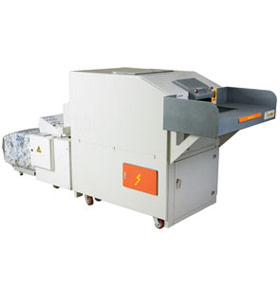

EcoShred ES-550B 8x40-80mm Cross Cut Shredder Baler
The Public Sector, Schools & Registered Charities can order online & receive 30 days instant credit - Read more here
RRP: £39,995.00
Sold Out
Sold Out
Specifications
- 600 sheets per pass
- Shreds Individual Sheets, Complete files inc metal rings, Books, Computer Printouts, CD's/DVD's, Floppy Disks & Credit Cards
- Shreds up to 500kg per hour
- 8x40-80mm Cross Cut / DIN Security Level P-1 for general documents. More Info.
- 550mm Entry Throat (A4, A3 & A2)
- Produces up to 8-10 bales per hour
- Bale Dimensions (WxDxH):570x490x800mm
- Bale Weight:70kg
- Max Cycle Time: 10 seconds
- Pressing Power: 80.8 kN
- Dimensions (WxDxH): 1200x3300x1600mm
Jump to: Full Product Info
Shredders Buyers GuideShredder Oil & Waste Sacks for the EcoShred ES-550B
£129.00 (x1)
£348.30 (x3)
£1,032.00 (x10)
£348.30 (x3)
£1,032.00 (x10)
(All + vat)
Product Details

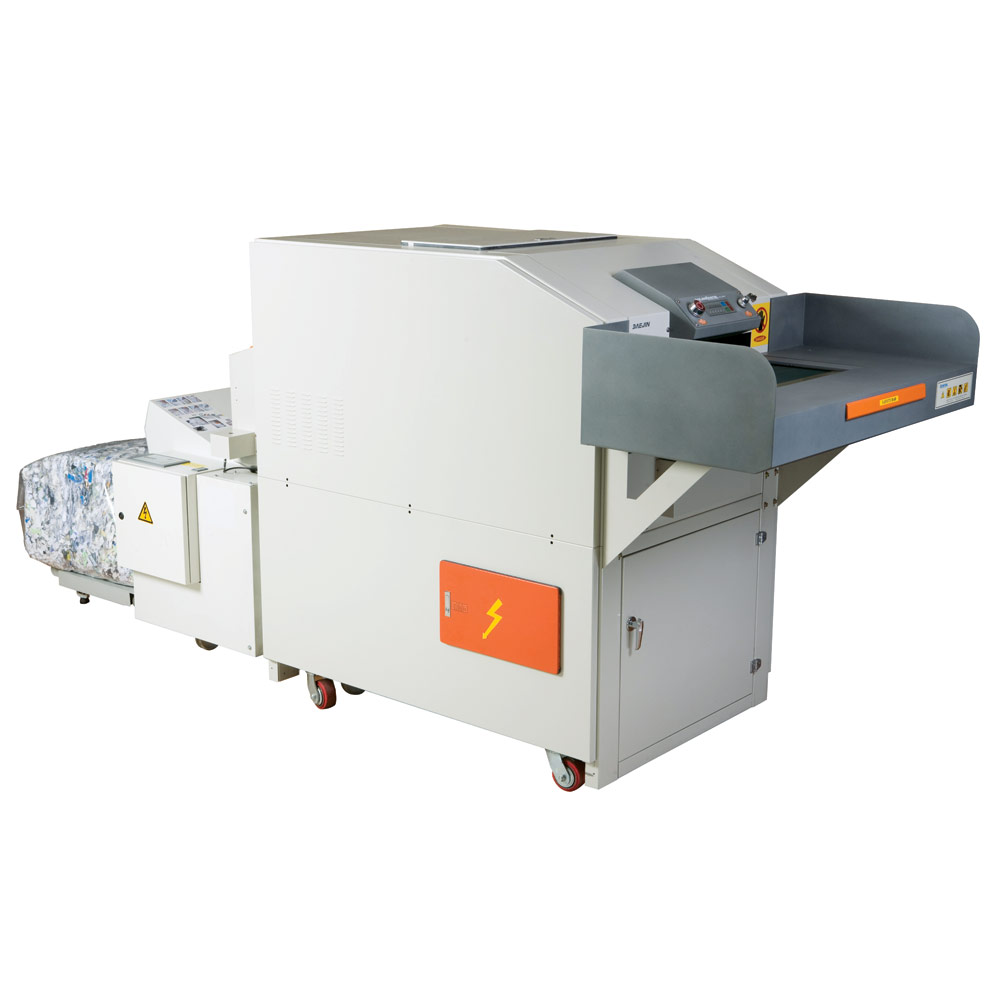

The EcoShred ES-550B Series Industrial Shredders now feature an LED Control Panel with Digital Load Indicator, and new Automated Features offering High Capacity Destruction for Shredding large volumes of material, serving the needs of an entire organization.Powerful enough to shred just about anything including entire files, stacks of computer forms, cardboard, tapes, CDs and magnetic disks.The Ecoshred 550 Cross-Cut model can shred up to 650 sheets at once, up to 10 meters per minute, with a shred size of 8x40-80mm.In addition, an optional Ouput Conveyor Belt System is available for the EcoShred 550 which transports material out of the shredder and into an external Waste Bin, increasing capacity and decreasing down time between emptying and replacing the waste bin.The EvenFlowTM Automatic Oiling System is a new feature of the EcoShred 550, which keeps the shredder in peak operating condition. An easy-to-use pump and reservoir work with 25 copper distribution nozzles to lubricate the steel cutting blades.
NB. Please note that this machine requires a 3-phase power supply.
DIN Security Levels
Shredders that destroy paper to Din Level P-1 are suitable for shredding general documents such as advertising materials.
| Specifications | |
| Name | ES-550B |
| Security | |
| Paper Shred Size | 8x40-80mm Cross Cut |
| DIN 66399 Security Levels | P-1 |
| Capacities | |
| Sheet Capacity All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 600 sheets |
| Hourly Capacity | 500kg per hour |
| Specifications | |
| Throat Width | 550mm Entry Throat (A4, A3 & A2) |
| Shreds | Individual Sheets, Complete files inc metal rings, Books, Computer Printouts, CD's/DVD's, Floppy Disks & Credit Cards |
| Waste Bin | |
| Waste Sack Type | S9 |
| Extra Media Waste Bin | N/A |
| Baling Specifications | |
| Hourly Bales | 8-10 |
| Cycle Time (Max) | 10 seconds |
| Bale Dimensions (WxDxH) | 570x490x800mm |
| Bale Weight | 70kg |
| Pressing Power | 80.8 kN |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 10 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 70 dB |
| Motor | 7.5 kW |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1200x3300x1600mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 1400kg |
| Return to Base Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 1 year |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
1 year |
| Downloads | |
| Buyers Guide | Download Here
 |
Specifications subject to change - See Terms & Conditions for more info
